Description

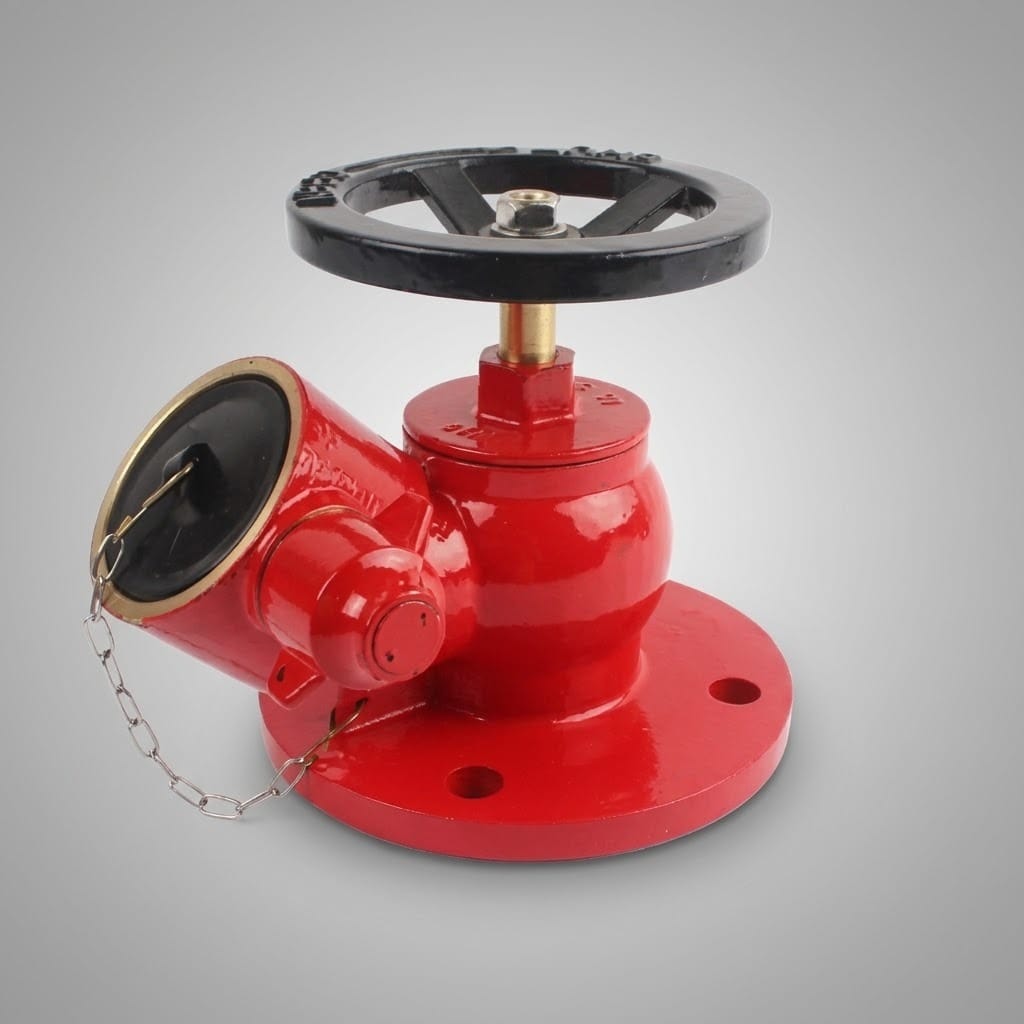

Fire Titan Oblique Landing Valve (Flanged Inlet). Designed for installation on wet risers in buildings, this landing valve provides firefighting personnel with permanently charged water from a pressurized supply, giving fast, reliable access to water during a fire emergency.
Built as a low-pressure, oblique-type valve with a flanged inlet, delivery hose connection, and blank cap, it’s rated for use at nominal inlet pressures up to 15 bar. The valve’s copper alloy body, grey cast iron hand wheel, and replaceable rubber disc facing are engineered for long service life under repeated firefighting use, while a strap and pad lock allow the hand wheel to be secured against unauthorized operation.
If you’re looking for a reliable oblique landing valve in Pakistan, Fire Titan offers a durable, low-pressure valve solution built for wet riser firefighting systems in commercial and high-rise buildings.
Key Features
- Oblique Type, Flanged Inlet Design
- Low-Pressure Valve — Up to 15 Bar Nominal Inlet Pressure
- Copper Alloy Body & Hand Wheel Components
- Grey Cast Iron Hand Wheel
- Replaceable Disc Facing & Gland Seal
- Gland Seal Replaceable Under Pressure (Valve Fully Closed)
- Strap & Pad Lock to Prevent Unauthorized Use
- Black-Painted Hand Wheel, Red Body Finish
- Available in DN50 & DN65 Flange Sizes
Built for Wet Riser Firefighting Systems
The valve connects directly to a building’s pressurized wet riser system, giving firefighters immediate access to a charged water supply through the delivery hose connection — critical for fast response in multi-story buildings.
Durable, Corrosion-Resistant Materials
The stem, bonnet, body, female instrument outlet, blank cap, and gland are all made from copper alloy, offering strong corrosion resistance, while the hand wheel is cast from grey cast iron for durability under repeated use.
Serviceable Under Pressure
The gland seal can be replaced even while the system remains pressurized, as long as the valve is fully closed — reducing downtime during maintenance without needing to depressurize the entire riser system.
Secured Against Unauthorized Use
A strap and pad lock secure the hand wheel, preventing tampering or accidental operation while keeping the valve ready for immediate use by authorized personnel in an emergency.
Technical Specifications
| Specification | NDR 098 | NDR 100 |
|---|---|---|
| Valve Type | Oblique, Flanged Inlet | Oblique, Flanged Inlet |
| Pressure Rating | Low Pressure Valve | Low Pressure Valve |
| Inlet Flange Size | DN50 | DN65 |
| Working Pressure | 15 Bar Maximum | 15 Bar Maximum |
| Test Pressure | Valve Seat Test at 16.5 Bar; Body Test at 22.5 Bar | Valve Seat Test at 16.5 Bar; Body Test at 22.5 Bar |
| Flange Drilling | BS 4504 Part 2:1974 Table 16/21 | BS 4504 Part 2:1974 Table 16/21 |
| Water Flow Rate | 8.5 L/S @ 4 Bar Outlet Pressure | 8.5 L/S @ 4 Bar Outlet Pressure |
Component Materials
| Component | Material |
|---|---|
| Handwheel | Grey Cast Iron |
| Stem | Copper Alloy |
| Bonnet | Copper Alloy |
| Body | Copper Alloy |
| Female Inst. Outlet | Copper Alloy |
| Blank Cap | Copper Alloy |
| Renewable Disc Facing | Rubber |
| Washer | Rubber |
| Gland Seal | Rubber |
| Bonnet Seal | Teflon |
| Gland | Copper Alloy |
| Strap with Pad Lock | Leather |
Recommended Applications
The Fire Titan Oblique Landing Valve is ideal for:
- High-Rise & Commercial Buildings
- Wet Riser Firefighting Systems
- Fire Hydrant Systems
- Industrial Facilities
- Shopping Malls & Hotels
- Institutional Buildings
Benefits of the Oblique Landing Valve
- Immediate access to pressurized water during firefighting
- Durable copper alloy construction resists corrosion
- Serviceable gland seal reduces system downtime
- Locking mechanism prevents unauthorized tampering
- Compliant with BS 4504 flange drilling standards
- Available in two flange sizes to fit different riser systems
- Reliable performance rated up to 15 bar working pressure
The Fire Titan Oblique Landing Valve is a durable, code-compliant valve solution for buildings relying on wet riser firefighting systems. With its corrosion-resistant copper alloy construction, serviceable design, and secure locking mechanism, it’s built to perform reliably when firefighting access is needed most.
